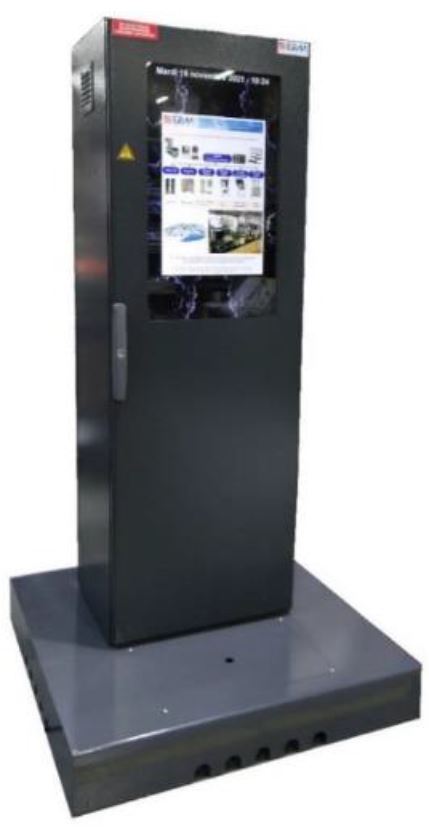

TROTEM - Digital signage

Presentation:

Trotem digital signage is a display panel that integrates into a Smart City and our Smart Grid, For'SmartGrid.

A digital signage system allows you to broadcast information in the form of video, audio, image, or document files by sending them from your computer to servers. These servers process the information and associated configuration to launch the displays according to the programming.

With the web, digital signage is connected. On the one hand, it can connect to data feeds to provide practical information, news, etc. It can also broadcast content directly from social networks. Finally, digital signage connects to applications (web or business software) to extract data, process it, and broadcast it.

The information broadcast can take the form of various media such as films, photo slideshows, animations, PowerPoint presentations, files (PDF, Excel, Word), web pages, RSS feeds, or any type of multimedia file.

Using Node RED allows for remote maintenance of the system: monitoring energy consumption, monitoring PC load statistics, and remotely turning the screen and cabinet fan on and off.

Technical solutions covered:

32-inch full HD (1920 x 1080) display screen

4G Wi-Fi router (without SIM card)

NUC PC with Win 10 Pro, hard drive, Wi-Fi/Bluetooth 4.0 controller, 4 GB RAM for display management

GEKKOTA Runtime software for display management.

Screen Composer Playzilla software for creating projects from different types of documents.

Educational activities:

Educational activities provided in the form of Cpro (Cerise Pro) scenarios.

Files 1, 2, and 3 provided

Video tutorials

MELEC activities

A01 – Introduction to urban digital signage

Skills assessed: C1-C01, C2-CO2, C7-CO5, C10-CO7, C11, C12-CO8

A02 – Connection and cabling of digital signage

Skills assessed: C1-C01, C2-CO2, C3, C4-CO3, C7-CO5, C11, C12-CO8

A03 – Delivery and commissioning of digital signage

Skills assessed: C1-C01, C2-CO2, C3, C5-CO4, C7-CO5, C10-CO7, C11, C12-CO8, C13-CO9

A04 – Maintenance of the digital signage computer

Skills assessed: C1-C01, C2-CO2, C5-CO4, C7-CO5, C8, C10-CO7, C11, C12-CO8

SN activities

A01 – Introduction to urban digital signage

Skills assessed: C1-1=C1-1, C2-1, C4-2=C2-1, C8-1=C4-1

A02 – Installation of digital signage

Skills assessed: C3-2, C3-3, C4-2=C2-1, C4-3=C2-2

A03 – Commissioning the digital signage installation

Skills assessed: C1-1=C1-1, C2-2, C3-2, C3-3, C4-3=C2-2, C4-3=C2-2, C4-4 C8-1=C4-1

A04 – Maintenance of the digital signage computer

Skills assessed: C2-1, C2-2, C5-1, C5-2, C5-3, C5-4, C5-5, C5-6, C6-1, C6-2, C6-3

Key features:

Educational activities provided in the form of Cpro scenarios Bac Pro MELEC / Bac Pro SN with answers

Integrates perfectly into a Smart City and the Smart Grid - For'SmartGrid teaching system

Reference:

TE20 : TROTERM, dynamic, commercial, and advertising display

TE21: Straight or 90° connection base
