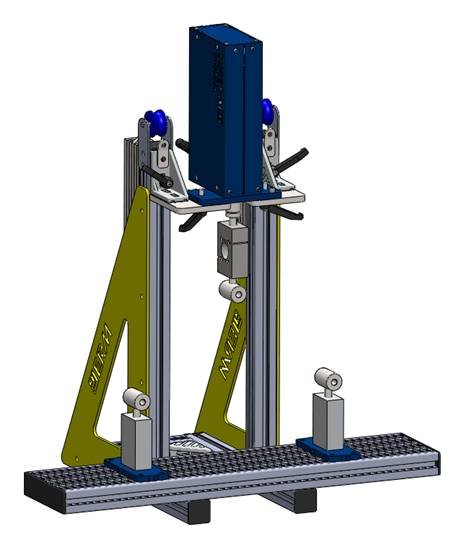

TangoKit

Test bench for materials and structures

Doc. commercial Fr
Related ranges :

Technical specifications:

Electric cylinder for tensile, flexure and compression 2 kN

Travel speed 90 mm/mn

Travel 90 mm

Cylinder adjustable in height

Work-bench 1000 x 160 mm

Maximum height of the tested sample 300 mm

Displacement accuracy 0,05 mm

Force sensor 5 kN, resolution 0,1 N

Emergency stop on the junction box

«Oscar» software for data logging and processing

Training activities:

Studying beams

Studying structures

Studying tensile strengths

Studying compression

Materials comparison

Key points:

Possibility to measure tensile strength and compression with the same bench

Compact design

Many mechanical parts and frames (standard or optional)

References:

TK10: TangoKit test bench for materials and structures, with frame, electric cylinder 2500N, 3 simple (semi-cylindrical) fulcrums, software

TK11: Extra displacement sensor (digital comparator)

TK12: Device to measure torsional momentum –Test samples : consult us
