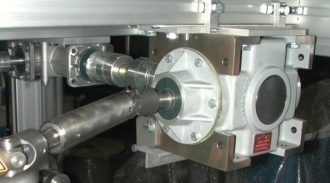

Angle transmission case (Degrouping)

Doc. commercial Fr

Mallette Renvoi d'angle (Dégroupeur)

Related ranges :

Families of studied components:

Movement conversion (=> Gears)

Training activities:

Analysis of mechanical design solutions and 3D mechanical study with Solidworks (Cinematics…)

Mounting, dismounting of angle transmission

Product strengths:

Component taken from the Degrouping system and delivered with the technical documentation of the Degrouping system to relocate in the context

References:

DE13 : Angle transmission case (Degrouping)
